Turbocharger questions, answered
What chief engineers, superintendents and plant managers ask us most often — about how turbochargers work, maintenance, cleaning, spare parts and service. With a plain-language glossary at the end.
How it works and why it matters
How does a turbocharger work?
The engine's exhaust gas drives a turbine; on the same shaft, a centrifugal compressor draws in air, compresses it and delivers it to the cylinders. The turbocharger recovers energy that would otherwise be lost up the stack — it doesn't consume engine power, it multiplies it.
Why do engines use turbochargers?
For four reasons: to use the waste heat in the exhaust, to get more power from the same engine size, to meet emission limits and to lower fuel consumption. On medium and large engines, the turbocharger is what makes modern power density possible.
How fast does a large turbocharger spin?
On large industrial turbochargers the blade tips run at around 480 m/s and the centrifugal forces on the rotor are measured in tonnes per blade. That is why clearances, balancing and the exchange intervals of rotating parts are not paperwork: they are what keeps the machine in one piece.
What is a turbocharger cartridge?
The pre-assembled core of the machine: rotor, bearings and bearing housing, ready to install. Exchanging the cartridge instead of overhauling in place turns days of downtime into hours — which is why critical plants usually keep one spare per turbocharger type.
Why must the turbocharger match the engine?
The turbocharger specification is agreed between the engine builder and the turbo manufacturer after matching tests. Changing it on your own — a smaller nozzle ring, a different wheel — can cause surging, overspeed and shorter rotor life; and on IMO-certified marine engines it triggers re-certification. Any change goes through the engine builder.
What is turbocharger surging?
A flow instability: the compressor is asked for more pressure than the current air flow can sustain and the flow breaks down, with a characteristic howl or bark. Sustained over time it overloads the thrust bearing. The typical causes are in our troubleshooting guide.
Inspection, intervals and balancing
What should be logged every day?
Every 25–50 running hours: engine output and speed, intake air temperature, exhaust temperatures before and after the turbine, charge air pressure, cooler pressure drop, oil pressure and temperature — plus turbo rpm and filter pressure loss where readings exist. A sustained deviation from the baseline is the earliest warning of almost every failure.
How often should a turbocharger be overhauled?
As an industry guideline, bearing inspection and overhaul fall between 8.000 and 12.000 h depending on type, installation and operating conditions — but the rating plate and the OEM manual take precedence. Our criterion is measured condition: clearances and findings, not just the calendar.
What does a professional overhaul include?
Dismantling and clearance measurement, cleaning, crack and erosion inspection (with NDT where it applies), assessment of rotor and bearings, replacement of whatever is out of tolerance, rotor balancing and reassembly at the correct torques — all documented in the service report.
Why do clearances matter so much?
The rotor's radial and axial clearances define its working position. Out of tolerance, the rotor can end up rubbing — and at these speeds a rub is a serious failure. They are measured at every strip-down and every assembly, without exception.
When must the rotor be rebalanced?
After any blade replacement or repair, when there are signs of rubbing or vibration, and as periodic practice — the usual recommendation is around 20.000–24.000 h. Always on a balancing machine and in expert hands: on a turbocharger you don't correct by adding mass, you correct by removing material at the defined planes.
Do bearings and oil pumps have a service life?
Yes: a defined operational life in hours — typically between 8.000 and 16.000 h for rolling-contact bearings, depending on type and conditions. At the end of that life they are replaced or professionally reconditioned; a properly reconditioned bearing returns to service with the same life as a new one.
Washing the turbocharger without stopping the engine
Why clean a turbocharger in operation?
Because fouling costs money from day one: efficiency drops, the rotor drifts out of balance and exhaust temperature climbs. Periodic cleaning in service slows that degradation and stretches the intervals between overhauls. Compressor and turbine are cleaned by different methods.
How is the compressor washed in service?
By injecting water with the engine at full load: the dirt layer is removed by droplet impact, not by dissolving it — which is why no chemicals are needed. Never salt water. The typical interval is 1 to 3 days depending on the intake air; once the layer is thick, dismantling is the only cure.
And the turbine? (wet washing)
On heavy fuel, the turbine is water-washed at reduced load, with exhaust temperature inside the manual's limit (typically below 430 °C) and enough charge air pressure to keep water out of where it must not go. And with patience: cool down before, dry out after — in the order of 15/10/15 minutes. Real intervals range from 1 to 20 days depending on fuel and combustion.
What is dry cleaning (granulate)?
On 2-stroke engines: a soft granulate — crushed nutshell, for example — is injected with the turbocharger at high speed. It only removes thin layers, so it is done daily or nearly so; each shot lasts about 20 seconds and, with the right medium, does not erode the turbine.
Can washing damage the turbine?
Yes, if done wrong: washing while too hot, or too often, subjects the nozzle ring and blades to thermal shocks that end in cracks and distortion. The right schedule is tuned to each installation by watching exhaust temperature, charge air pressure and rpm — and documenting it with photos during the first few services.
Are hairline cracks in the nozzle ring serious?
On high-efficiency designs, some hairline cracks are natural stress relief: they grow to a certain length and stop. What must not be done is weld them — the weld breaks again shortly after returning to service and punishes the base material. The right move is assessing them against the manufacturer's criteria.
Parts, lead times and warranty
Genuine or equivalent spare parts?
We supply both. Proven-quality equivalent parts are the smart choice in a great many cases: same function, often better availability and a real saving — with LR or DNV GL verification on request for IMO parts, and the same 12-month warranty we give on genuine parts. We propose whichever option suits each part and each deadline best.
Why do rotating parts have replacement intervals?
Because of creep and fatigue: every start, every load cycle and every hour at high temperature consumes life of the compressor wheel and turbine. Manufacturers set limits and exchange intervals on the rating plate — ABB's SIKO concept, for example. Running past them is gambling on a wheel burst.
What do you need to quote a spare part?
Three things: the turbocharger nameplate (make, model and serial number), the engine nameplate, and the part — reference number if you have it, or a photo. With nameplate and reference, most enquiries are answered the same day.
Is a spare cartridge worth keeping?
For critical installations, yes: a cartridge exchange turns days of downtime into hours, and the outgoing cartridge is overhauled without pressure. We also offer free standby equipment storage in Madrid or Algeciras.
What warranty do you give?
12 months on workmanship and spare parts — genuine and equivalent alike. It is in our terms of sale, not in the small print.
Can you keep running with a failed turbocharger?
In many cases yes, at reduced power: the failed unit is blanked off following the manual — rotor removed or secured, blanking cover fitted, oil supply to the blanked turbo shut, and the speed of the remaining turbochargers watched. It is an emergency measure to reach port or the next stop, not a fix. We prepare and assist with it 24/7.
Operating habits that stretch (or shorten) turbocharger life
Why is prolonged low-load running bad?
At part load, combustion produces larger particles, and those particles erode the nozzle ring and turbine rings. If you run several gensets, it usually pays to concentrate the load on fewer machines; and periodic fuel analysis avoids the worst surprises.
Is a turbocharger at standstill at risk?
Yes, a silent one: pitting corrosion. Sulphur residues from the exhaust and salt in the air attack the blades during standstill, and pits are where fatigue cracks start. After long lay-ups, a dye-penetrant inspection of the blades is money well spent.
Does a dirty charge air cooler affect the turbocharger?
Directly: exhaust temperature rises, charge air pressure falls and the compressor is pushed towards surge. The cooler's pressure drop is one of the cheapest readings to watch — and one of the most telling.
Where do I find symptoms and their causes?
In our troubleshooting guide: ten symptoms — high temperature, surging, vibration, oil — with their likely causes, what to check and when to call.
Turbocharger terms, in plain language
Cartridge (CHRA)
The pre-assembled core of the turbocharger: rotor, bearings and bearing housing. Exchanged as a unit to shorten downtime.
Charge air cooler (intercooler)
The heat exchanger that cools the air after the compressor: denser air, more mass per cylinder volume, lower working temperatures.
Charge air pressure (boost)
The pressure the compressor delivers to the engine above atmospheric. The reference reading for turbocharger health.
Compressor map
The chart describing a compressor's behaviour: flow, pressure ratio, efficiency islands and speed lines, bounded by surge on the left and choke on the right.
Compressor wheel
The wheel that compresses the intake air. Air enters at the inducer and leaves at the exducer; splitter blades raise flow at high speed.
Diffuser
The section after the compressor wheel that converts air velocity into static pressure.
Filter silencer
The suction-side part that filters the air and damps noise — a single component. Its filter mats are washable (up to a limit) and replaceable.
FOD
Foreign Object Damage: anything entering from the air or exhaust side and striking the wheels.
Fatigue (HCF / LCF)
Damage accumulated through load cycles: high-cycle (HCF, vibration) or low-cycle (LCF, starts and load changes). The reason rotor parts carry exchange intervals.
Journal (plain) bearing
A sleeve bearing running on an oil film that supports the shaft radially. Together with the thrust bearing, it decides rotor life.
Nozzle ring
The stationary ring of vanes that accelerates and directs exhaust gas onto the turbine blades. Its flow area is part of the turbo's specification: fouling, erosion or damage here changes engine behaviour directly.
Pressure ratio
Absolute compressor outlet pressure divided by inlet pressure. The figure that defines the operating point.

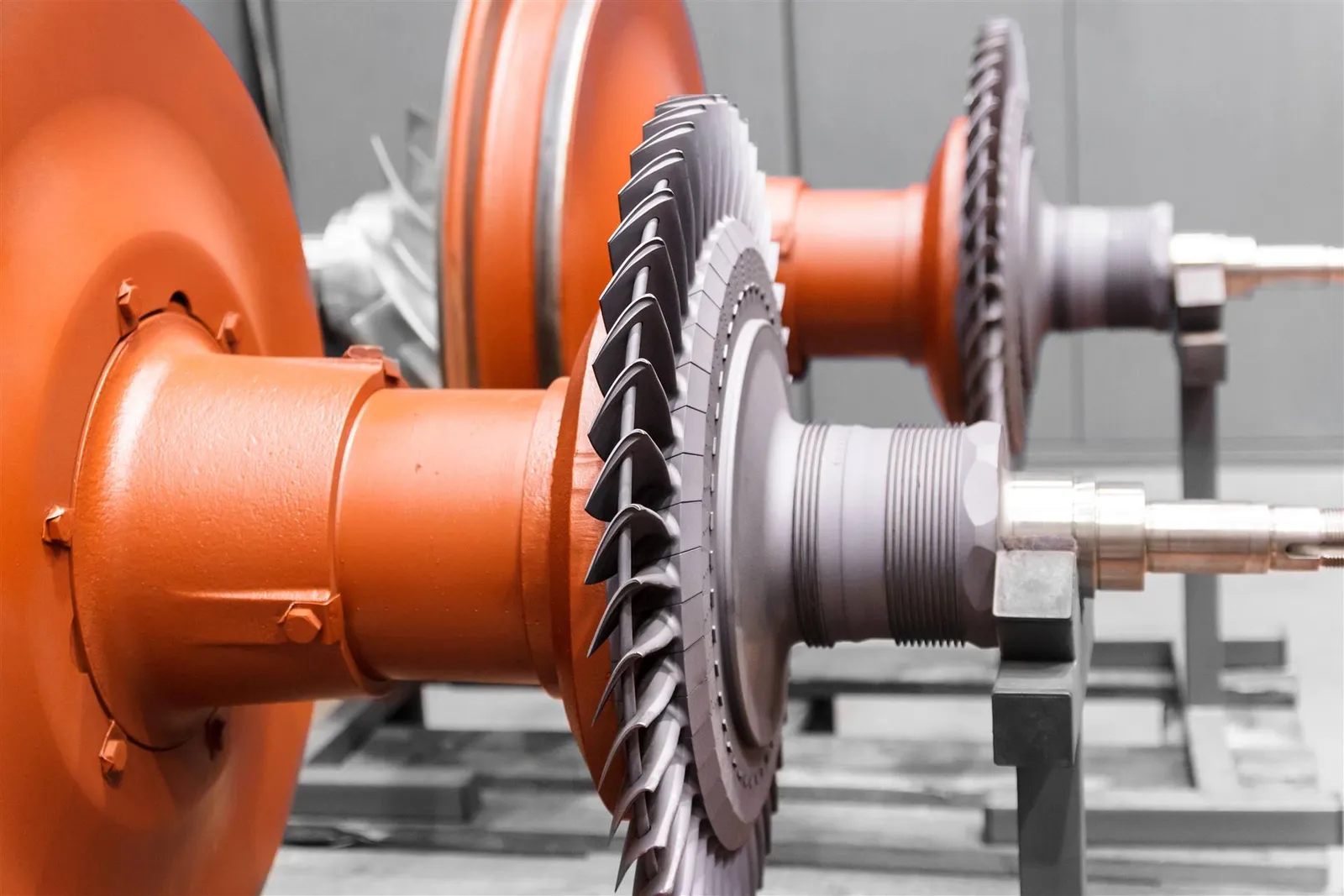

Rotor group
The complete rotating assembly: shaft with turbine wheel, compressor wheel and their fitted parts. Balanced as an assembly.
Seal ring
A piston-ring-style seal keeping pressurised gases out of the oil circuit at each end of the turbocharger.
Surge
Compressor flow instability — the left-hand limit of its map. A howling or barking noise; sustained, it overloads the thrust bearing.
Thrust bearing
The bearing absorbing the rotor's axial thrust, caused by the pressure difference between turbine and compressor ends.
Tip clearance
The running gap between blade tips and the housing. Too wide, gas slips past without doing work; too narrow, contact becomes a risk. Keeping it in tolerance is a core goal of every overhaul.
Turbine wheel
The exhaust-side wheel: converts gas energy into the torque that drives the compressor. Axial on large turbochargers, radial on small ones.
Unbalance
An asymmetric mass distribution about the axis of rotation — static, couple or dynamic (the most common). Corrected on a balancing machine by removing material at the correction planes.
Variable geometry (VTG)
A turbine with adjustable effective flow area: behaving as a small turbine at low load and a large one at full load, improving response.
Wastegate
A valve bypassing part of the exhaust around the turbine to limit boost. Common on small automotive and truck turbochargers; large industrial turbochargers normally do without it.
A/R ratio
The geometric ratio between the housing throat area and the radius to its flow centre. Used mainly when specifying small turbochargers.
Choke line
The right-hand limit of the compressor map: maximum usable flow. Beyond it, efficiency collapses and speed climbs fast.
